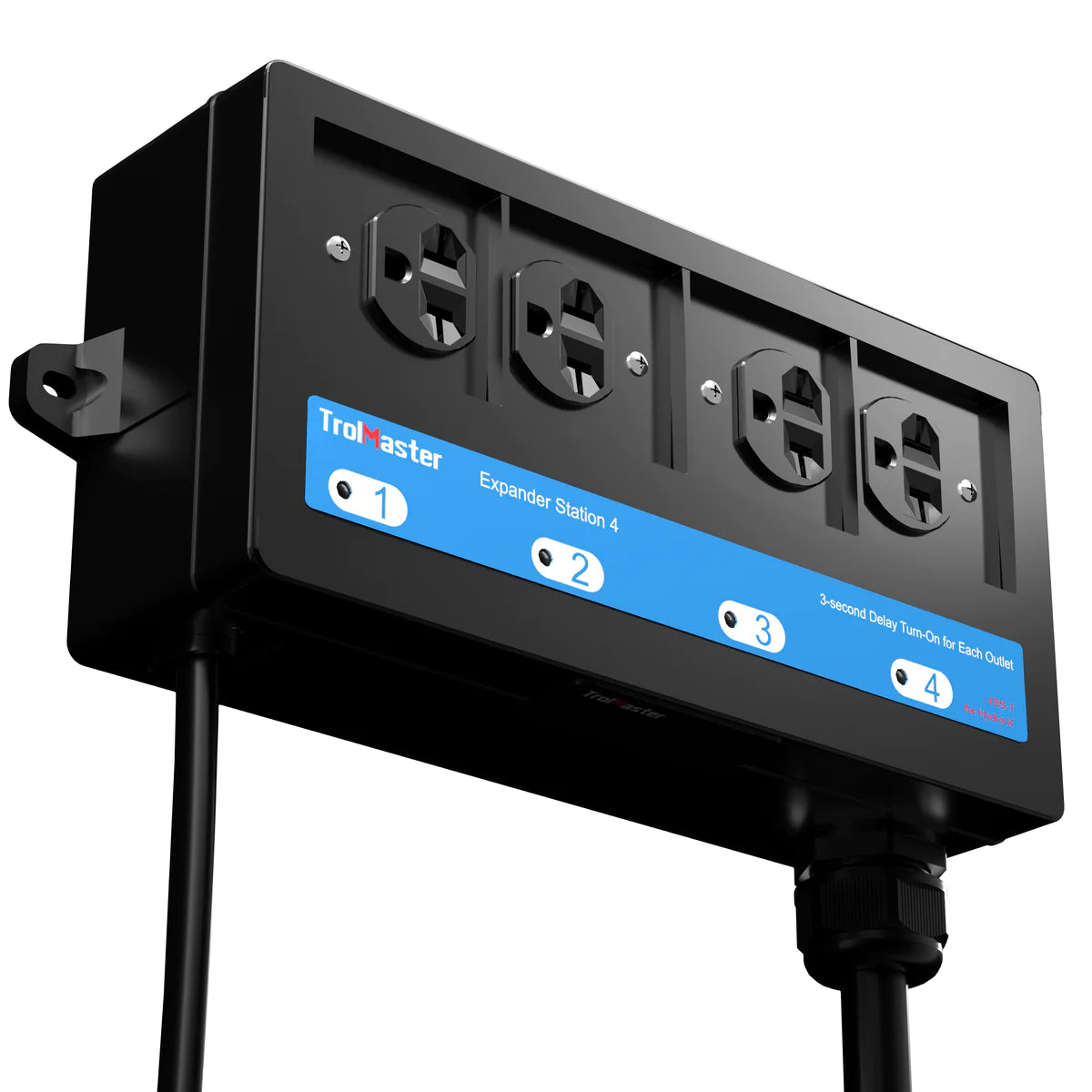

4RS-1 EXPANDER STATION

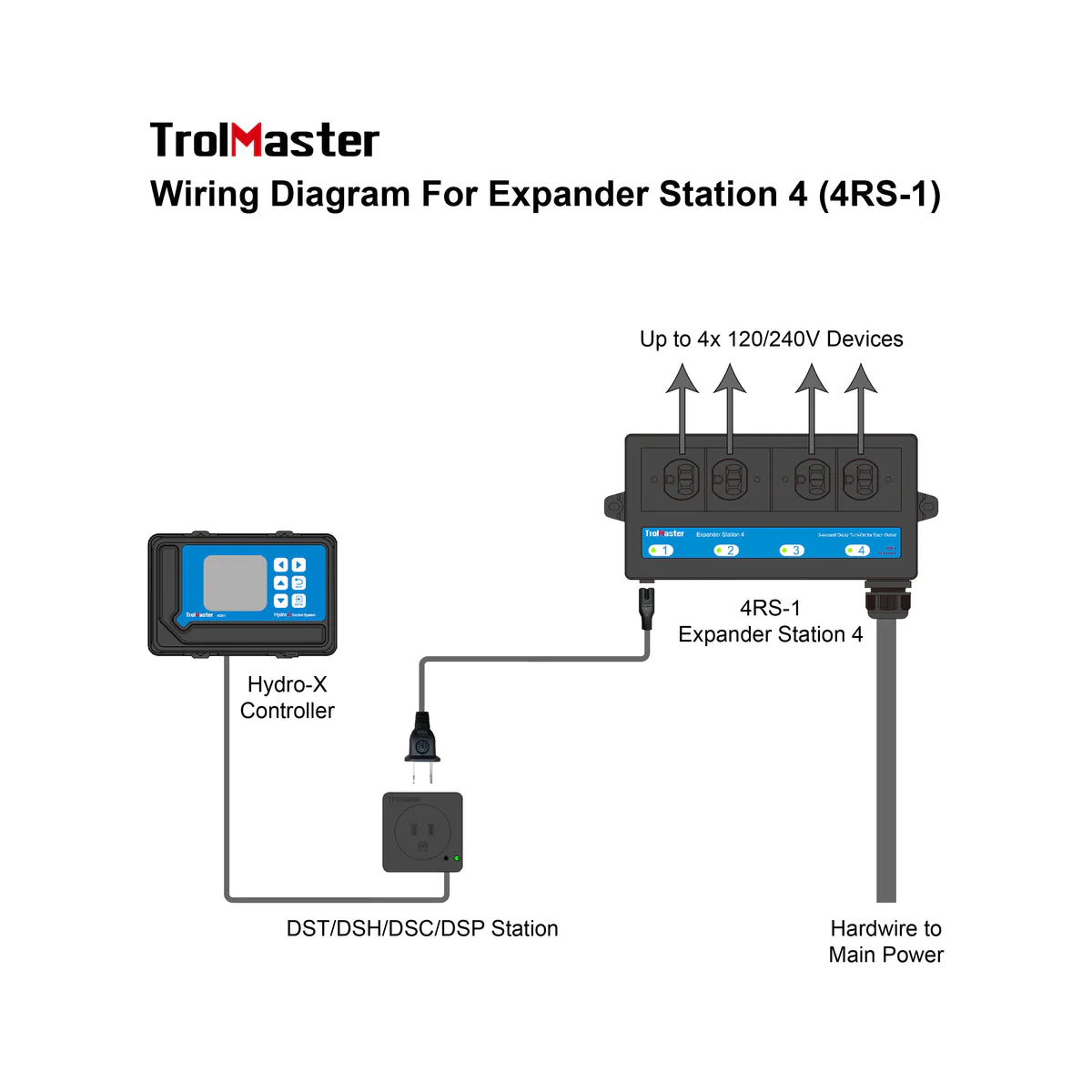

Expander Station 4Ôºà4RS-1Ôºâ The 4RS-1 is a universal 4-outlet power expansion module. It can be used with any of TrolMaster‚Äôs ‚Äúplug-in‚Äù style device modules to expand the number of devices that can be controlled by the Hydro-x. A single 120-240 volt ‚Äútrigger‚Äù cable on the 4RS-1 connects to your device / control module. The 4RS-1 trigger cable turns on all 4 of the outlets on the 4RS-1 after the Hydro-x activates the device module. There is a 3-second lag between each outlet's activation. This reduces high start-up (inrush current) and makes it safe to control up to 4 devices. A 120/240 volt power circuit (up to 50 amps @ 240 volts) is required for the installation of the 4RS-1. Three wire terminals inside the unit accept up to #6 AWG wire making connections to the power source easy.
