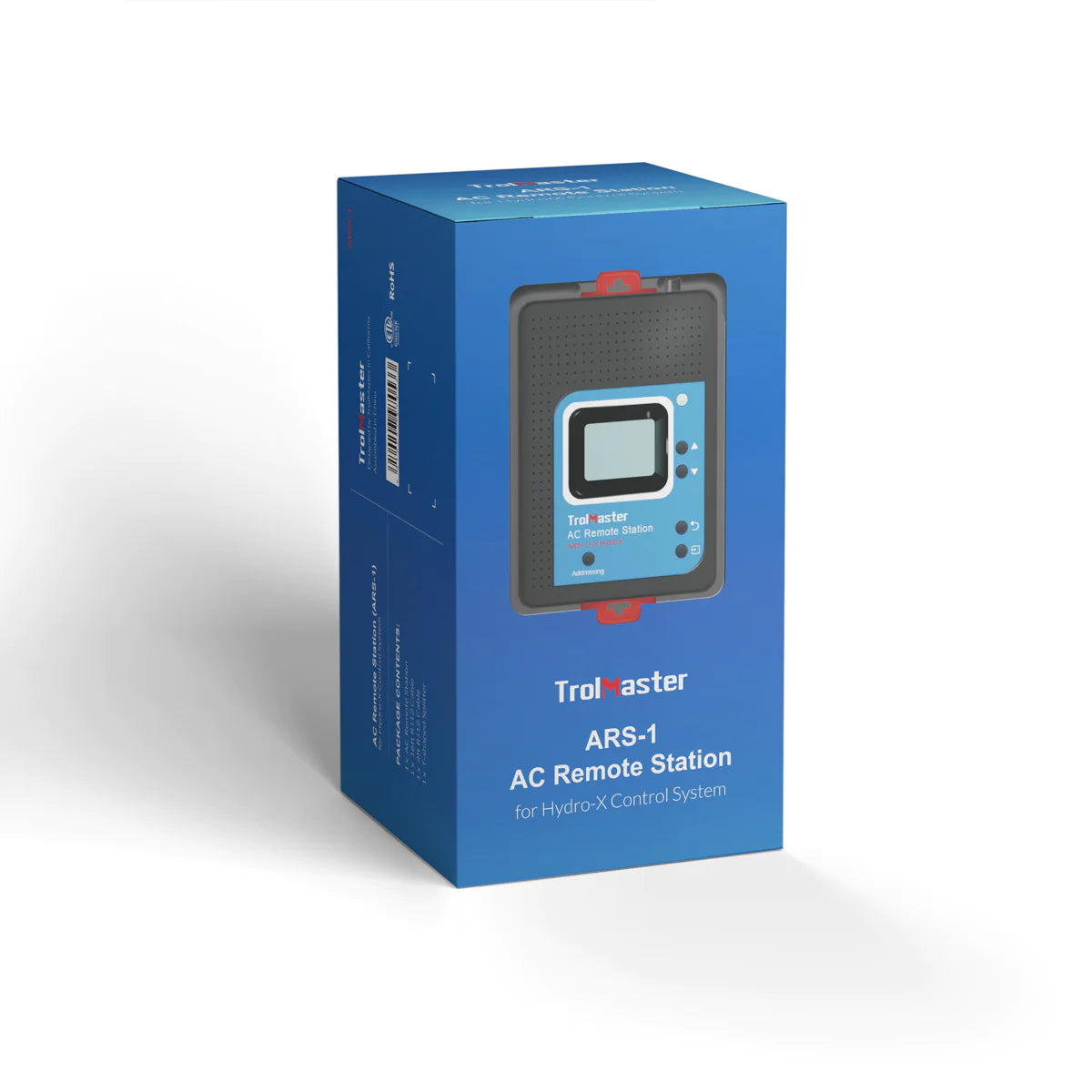

ARS-1 AC REMOTE STATION

The age-old issue of having different day and night temperature settings on your mini-split air conditioners is resolved with the innovative ARS-1 mini-split air conditioner controller. If the unit has an IR or infrared remote controller, the ARS-1 universal controller is compatible with the majority of mini-split air conditioners (and certain window-type AC units as well). To "teach" the infrared signals to the ARS-1 module, we use the included remote control. The interior mini-split head unit will receive the identical signals from the ARS-1 once it has "learned" those remote-control codes. Based on the condition of the photocell sensor, the ARS-1 will then automatically adjust the setpoint to the chosen Day or Night temperature setting.

What’s included with the AC Remote Station

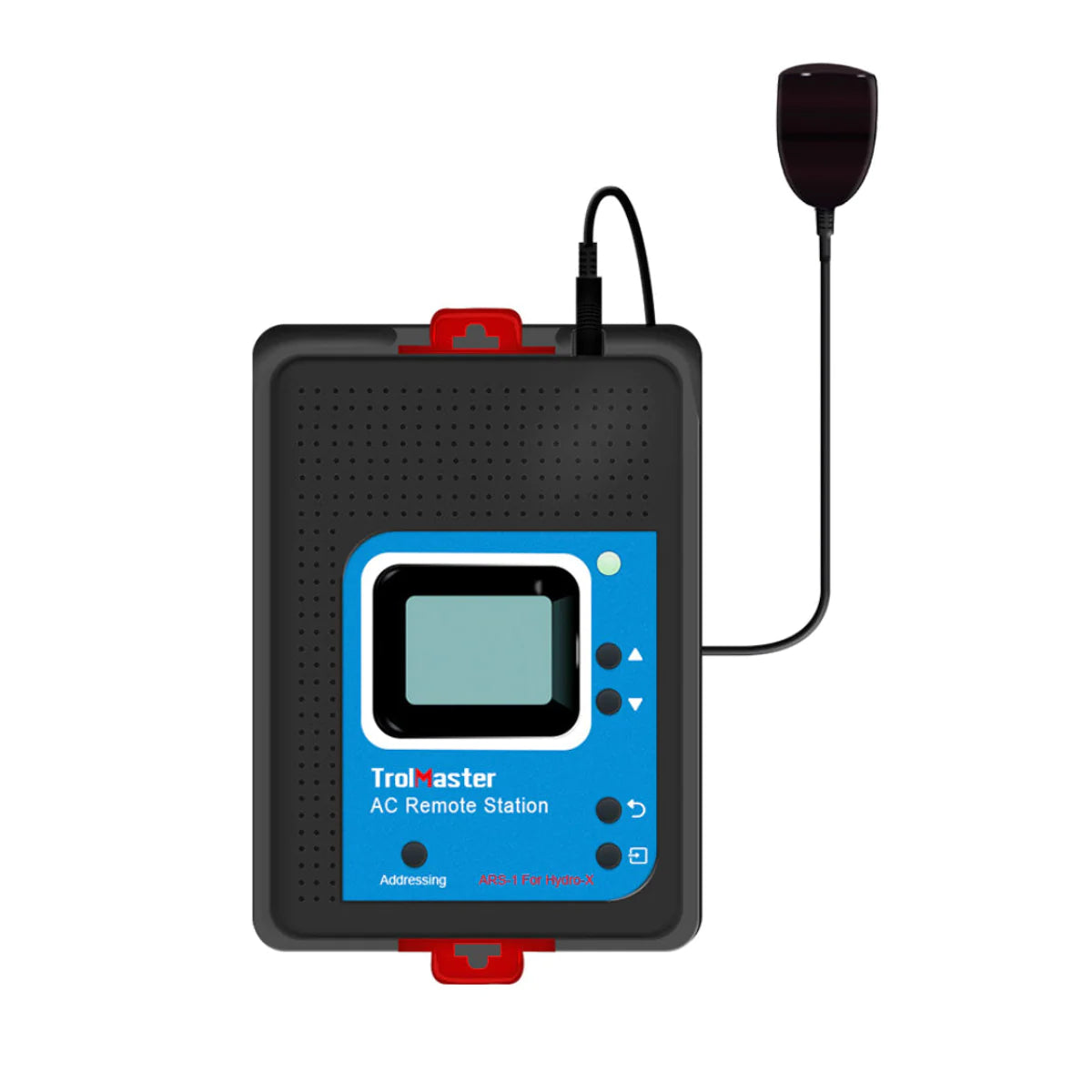

• 1 x AC Remote Station (ARS-1)
• 1 x Signal Emitter
• 1 x 5m RJ12 Cable
• 1 x 1.2m RJ12 Cable
• 1 x RJ12 T-Splitter

All other Device Stations, Sensors and Controllers need to be purchased separately.

Key features of the AC Remote Station

• LCD Display, Easy Operation

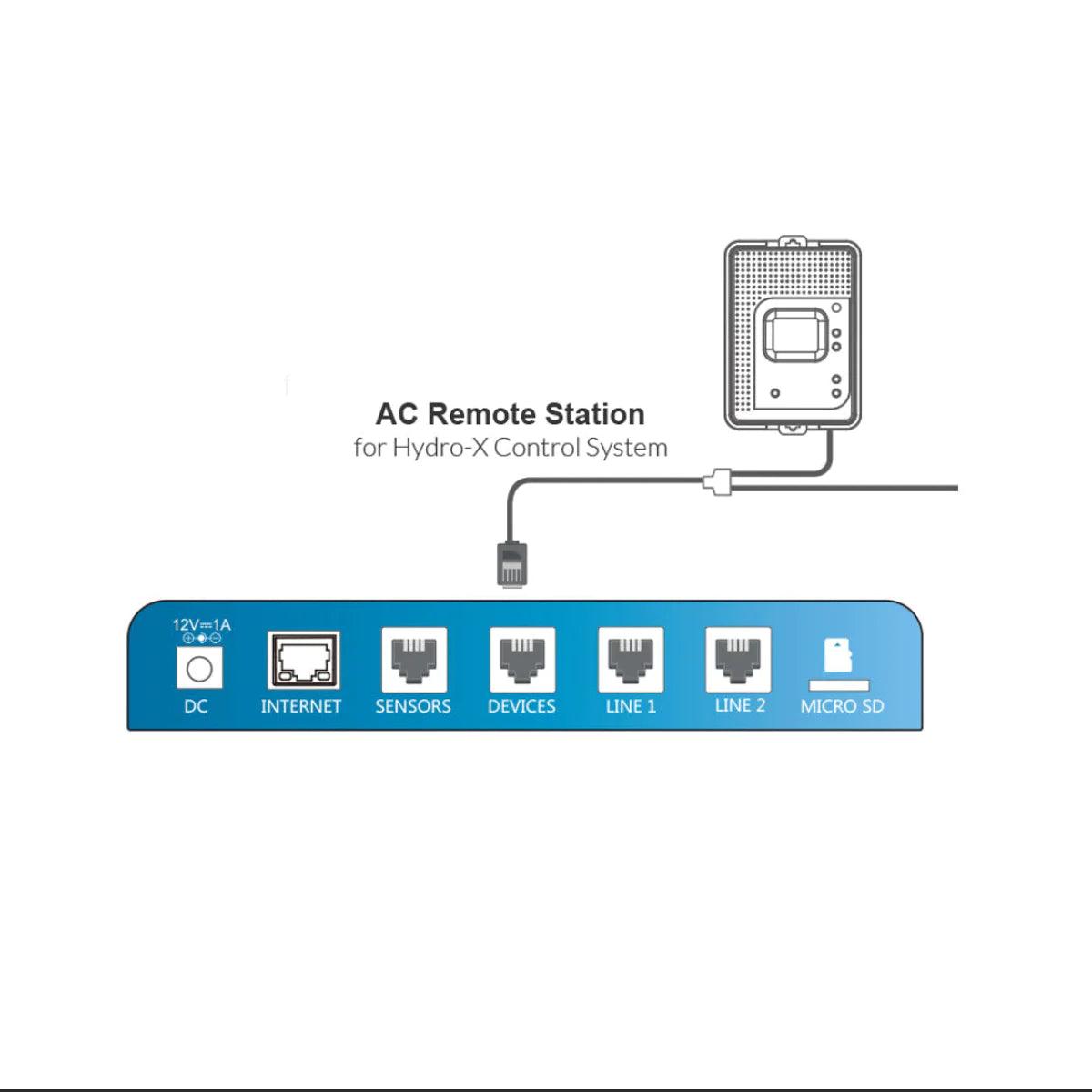

• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Key Specifications of the AC Remote Station

• Output Voltage: 0~11.5V
• Maximum Current: 0.2A
• Working Environment: Temperature 32-122°F, Humidity=90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
• G.W. per pack: 0.43kgs
